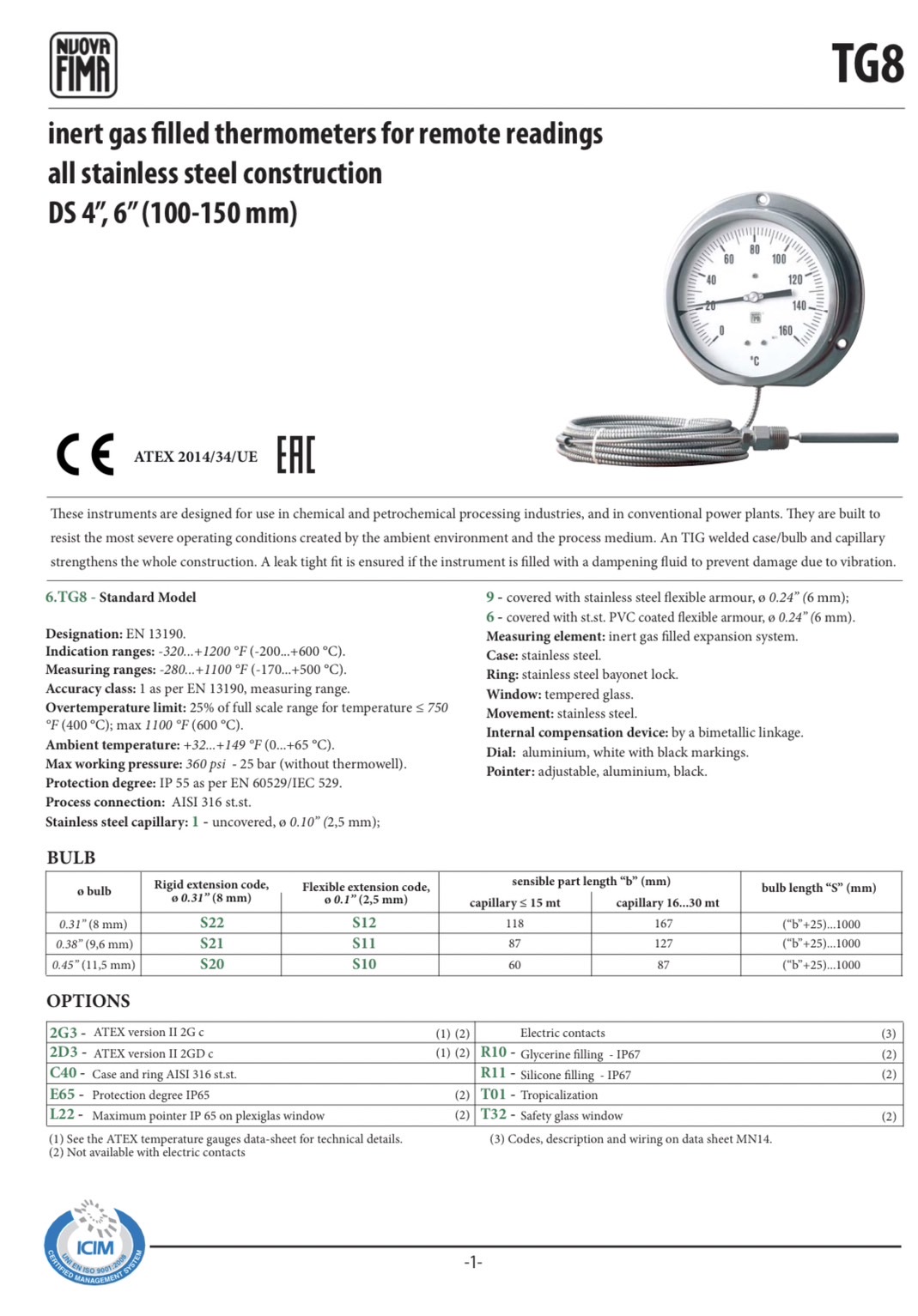

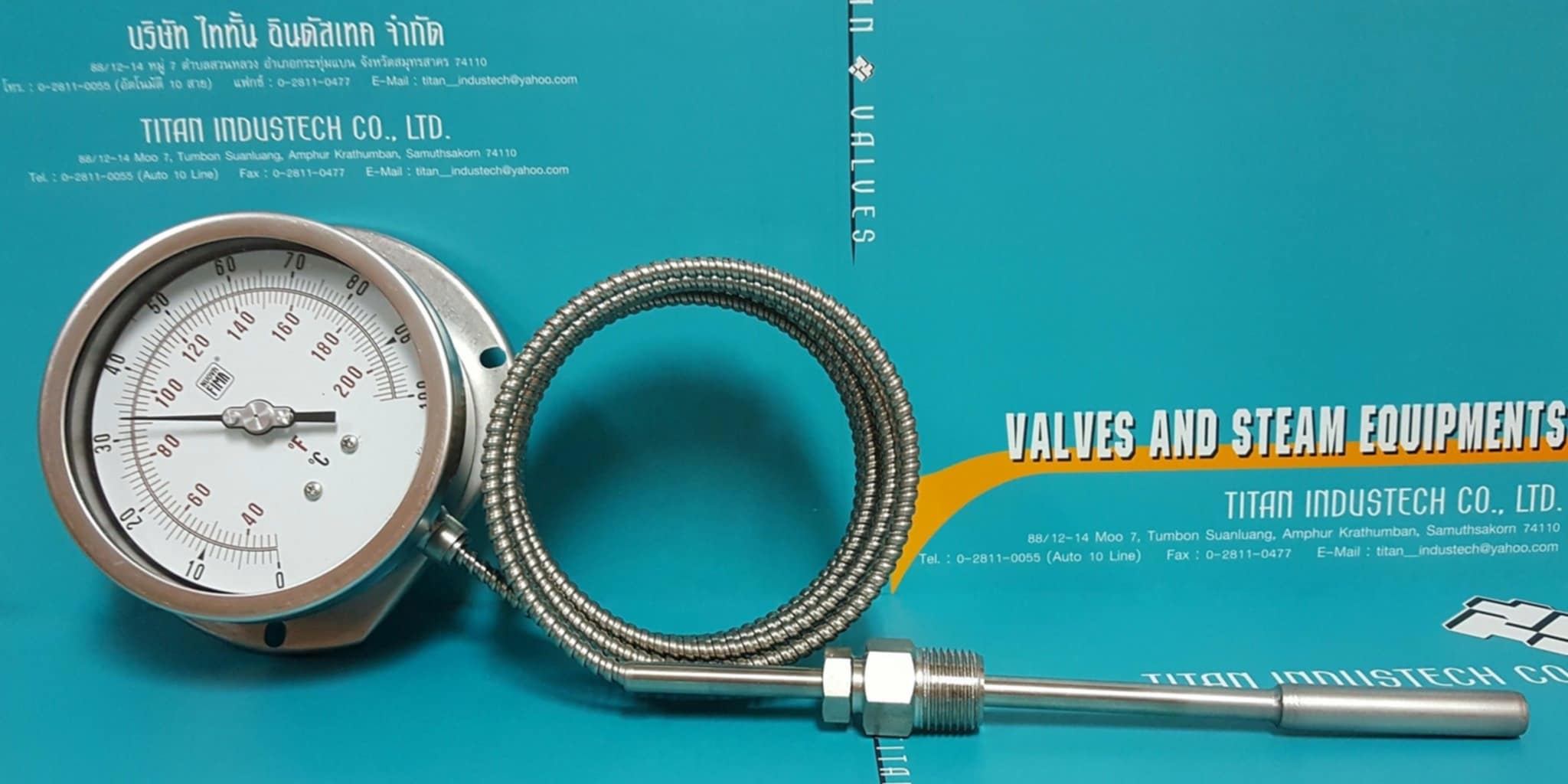

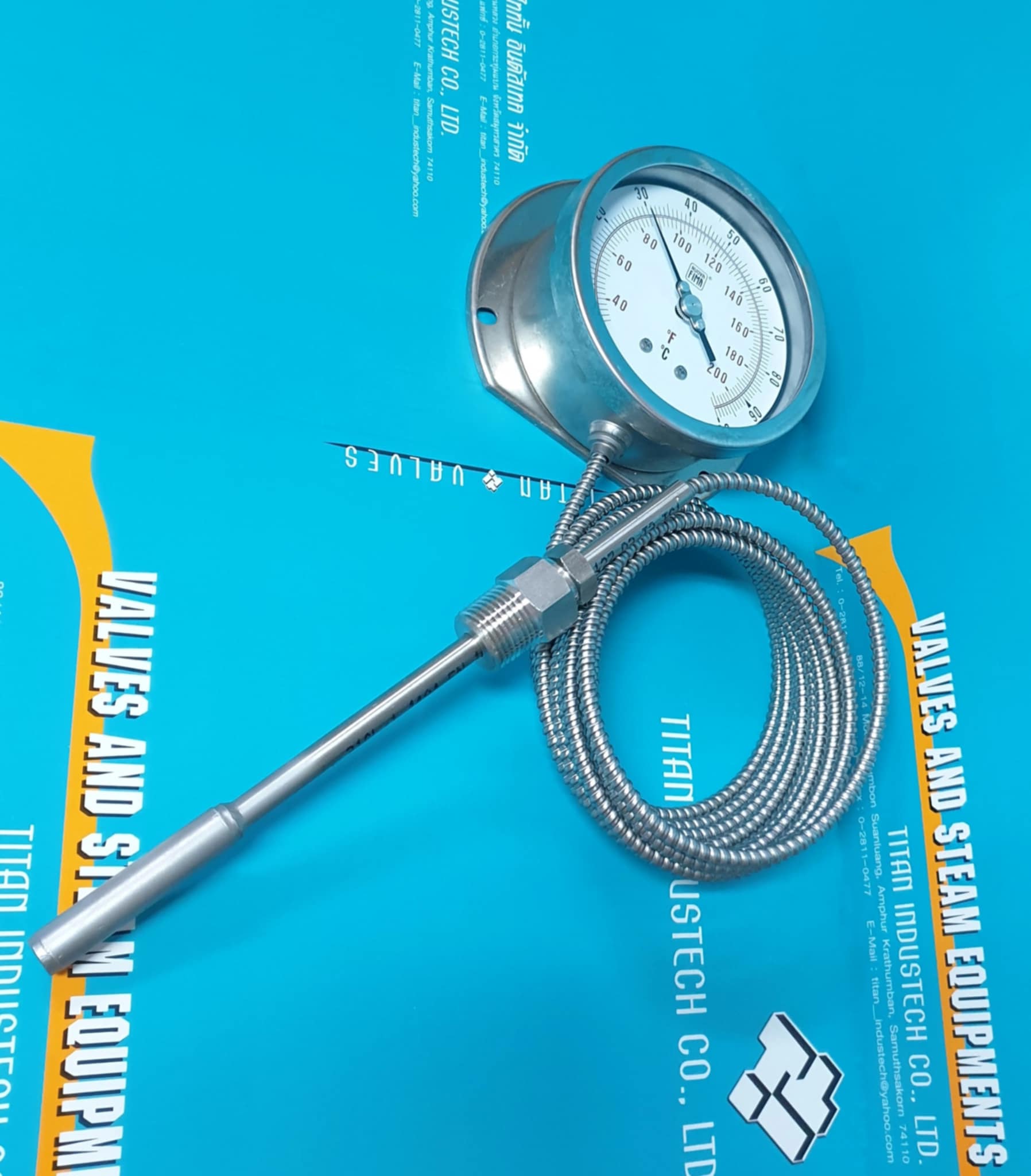

"NUOVA FIMA" INERT GAS FILLED THERMOMETER DS100 (4")




















        Inert gas filled thermometers for remote readings
all stainless steel construction
DS 4” , 6” ( 100-150 mm)

Designation: EN 13190.
Indication ranges: -320...+ 1200 ° F ( -200...+ 600 ° C) .
Measuring ranges: -280...+ 1100 ° F ( -170...+ 500 ° C) .
Accuracy class: 1 as per EN 13190, measuring range.
Overtemperature limit: 25% of full scale range for temperature
” 750 ° F ( 400 ° C) ; max 1100 ° F ( 600 ° C) .
Ambient temperature: -13...+ 149 ° F ( -25...+ 65 ° C) .
Max working pressure: 360 psi - 25 bar ( without thermowell) .
Protection degree: IP 55 as per IEC 529.
Process connection: AISI 316 st.st.

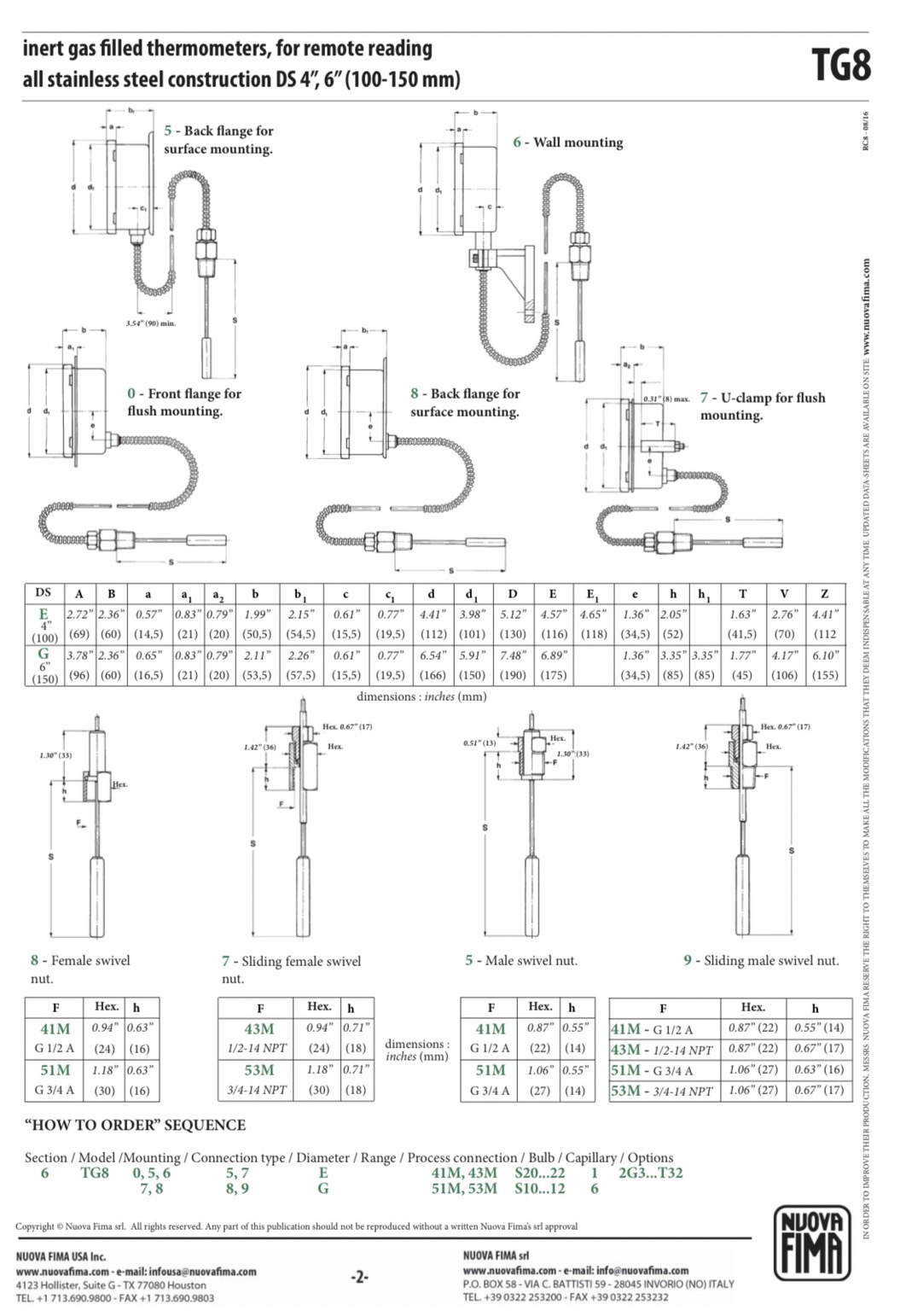

AISI 316 st.st. bulb: with rigid extension ø 0.31” ( 8 mm) :
S22 - ø 0.31” ( 8 mm) = 5.63” ...36.37” ( 143...1000 mm) ;
S21 - ø 0.38” ( 9, 6 mm) = 4.41” ...36.37” ( 112...1000 mm) ;
S20 - ø 0.45” ( 11, 5 mm) = 3.35” ...36.37” ( 85...1000 mm) ;
with flexible extension ø 0.10” ( 2, 5 mm) :
S12 - ø 0.31” ( 8 mm) = 5.63” ...36.37” ( 143...1000 mm) ;

S11 - ø 0.38” ( 9, 6 mm) = 4.41” ...36.37” ( 112...1000 mm) ;
S10 - ø 0.45” ( 11, 5 mm) = 3.35” ....6.37” ( 85...1000 mm) .
Stainless steel capillary:
1 - uncovered, ø 0.10” ( 2, 5 mm) ;
9 - covered with stainless steel flexible armour, ø 0.24” ( 6 mm) ;
6 - covered with st.st. PVC coated flexible armour, ø 0.24” ( 6 mm) .
Measuring element: inert gas filled expansion system.
Case: stainless steel.
Ring: stainless steel bayonet lock.
Window: tempered glass.
Movement: stainless steel.
Internal compensation device: by a bimetallic linkage.
Dial: aluminium, white with black markings.
Pointer: adjustable, aluminium, black.
