SWING CHECK VALVE (FLANGED)

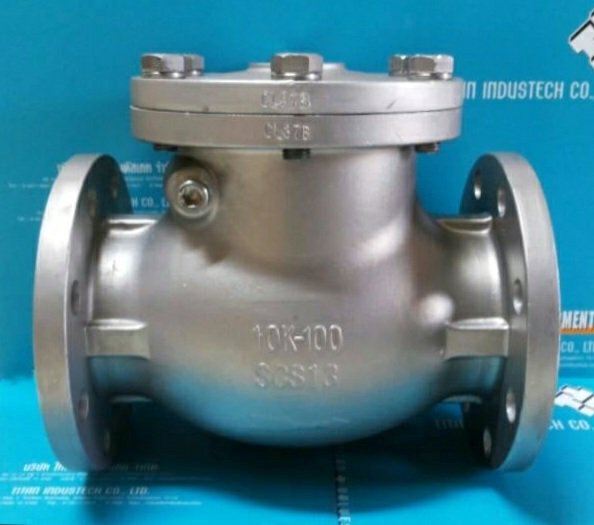

Flange End Swing Check Valve

FESCV150

Feature
Rating : ANSI 150/300, PN16, JIS 10K/20K
Size : 1/2″~12″
Special Alloy is also available upon request.
Item Parts Name Material
Stainless Steel Carbon Steel
1 Body A351-CF8M/CF8 A216-WCB
2 Bonnet A351-CF8M/CF8 A216-WCB
3 Disc A351-CF8M/CF8 A216-WCB
4 Disc Nut SS304 SS304
5 Body/Cover Bolting ASTM A193 B8 ASTM A192 B7 / A194 2H
6 Arm / Hinge A351-CF8M/CF8 A216-WCB
7 Body / Bonnet Gasket PTFE PTFE
8 Hinge Pin SS316 / SS304 SS304
Dimension ANSI 150-SS
Item H L A B C D nø-d
Size NPS
1/2″ DN15 63 108 89 60.5 35 11.2 4-16
3/4″ DN20 66 117 98 70.0 43 11.2 4-16
1″ DN25 75 127 108 79.5 51 11.2 4-16
1-1/2″ DN40 85 165 127 98.5 73 14.3 4-16
2″ DN50 110 203 152 120.5 92 15.9 4-19
2-1/2″ DN65 135 216 178 139.5 105 17.5 4-19
3″ DN80 135 241 190 152.5 127 19.1 4-19
4″ DN100 170 292 229 190.5 157 23.9 8-19
5″ DN125 170 330 254 216.0 186 23.9 8-22
6″ DN150 210 356 279 241.5 216 25.4 8-22
8″ DN200 250 495 343 298.5 270 28.6 8-22
10″ DN250 315 622 406 365.0 324 30.2 12-25
12″ DN300 376 698 483 432.0 381 31.8 12-25

* Unit : mm
